1000kva Containerised Generator Set ISO9001 Cummins Generator Set
| Place of Origin | CHINA |
|---|---|
| Brand Name | JINGTE |
| Model Number | FDC-800GF |
| Minimum Order Quantity | 1 set |
| Price | USD 78,600 per set |
| Packaging Details | neutral packing with wooden box, or as requested |
| Delivery Time | 25day |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 800kw/ 1000KVA | Type | Open,Primary Use |
|---|---|---|---|
| Phase | 50Hz, 4wire, 50Hz | AppliCaterion | Wild Area |
| Cooling | Water Cooler | Usage | Standby Using |
| Packing | Poly Bag With Wooden Box | Delivery | 25 Days |
| Highlight | Containerised Generator Set ISO9001,ISO9001 Cummins Generator Set,1000kva Containerised Generator Set |
||
You can tick the products you need and communicate with us in the message board.
| Generator | Sound-proof & Weather-proof Canopy | Cummins | |
|---|---|---|---|
| NEW Generating set | 1000KVA,50hz | 3phase, 4wire | |
| open Diesel Genrator | power station | Manufactor |
Product Description

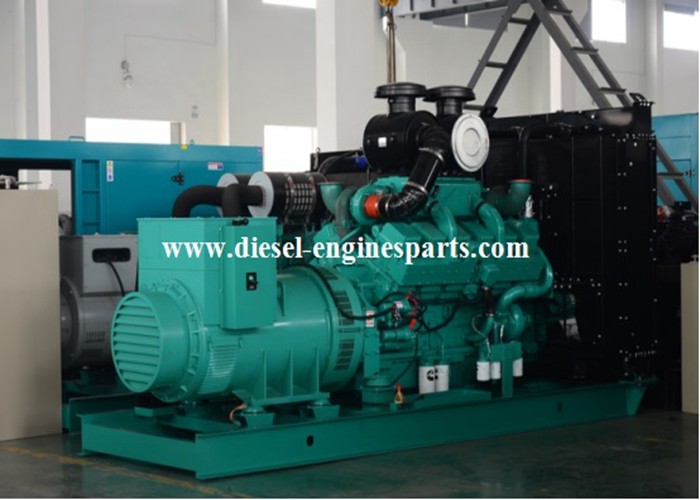

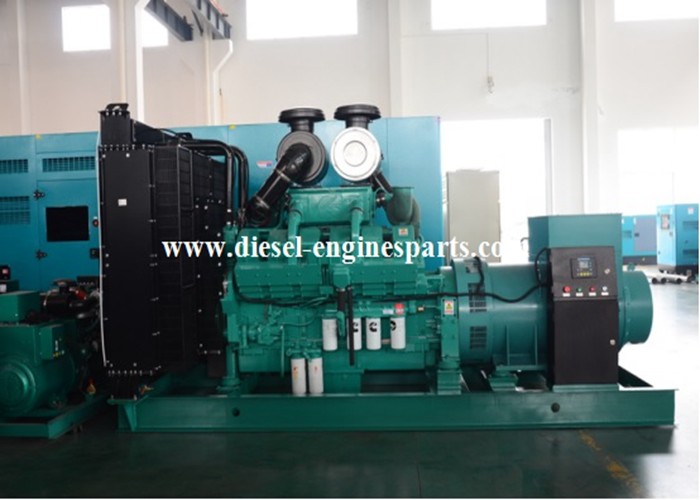

Full New Cummins 1000kva Generating Set Container Diesel Generator Set
1. Professional OEM diesel generator factory
2. General features:
- Engine:Cummins KTA38-G2
- Alternator:Leroy Somer TAL-A49-B
- Digital Controller:Deepsea DSE6020
- Equipped with 45℃ Radiator;
- Equipped with 24V DC Start motor;
- Equipped with 3200A Aisikai Brand Circuit Breaker;
n Equipped with vibration Isolators between the engine/alternator and base frame;
n Equipped with high performance maintenance-free lead-acid starting batteries and battery switch;
n Equipped with industrial silencer and flexible exhaust hose;
n Designed to Comply with ISO9001;
- Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions
| GENSET POWER | |||||
| Voltage | Hz | Phase | Power Factor | Current | Standby Power |
| 230V | 60HZ | 3 | 0.8 | 2510A | 1000KVA |
| WEIGHT AND DIEMENSIONS | |
| Size of Genset Open Type | 4400*1800*2400mm |
| Weight of Genset Open Type | 7500kg |
| Size of Genset Silent Type | N/A |
| Weight of Genset Silent Type | N/A |
| ENGINE DATA | |
| Manufacturer/Model | CUMMINS KTA38-G2 |
| No. Of Cylinder | 12 Cylinders |
| Cylinder Arrangement | L Type |
| Cycle | 4 Stroke |
| Aspiration | Turbocharged,Inter cooling |
| Combustion System | direct Injection |
| Bore×Stroke | 159mm x159mm |
| Displacement | 38 L |
| Prime Power/Speed | 809KW @ 1800rpm |
| Standby Power/Speed | 895KW @ 1800rpm |
| Speed Governor | Electronic |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Starter Motor | DC24V |
| ALTERNATOR DATA | |
| Manufacturer / Model | Leroy Somer TAL-A49-B |
| A.V.R | Included |
| Frequency/speed | 60HZ/1800rpm |
| Exciter type | Single bearing, Brush less, Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Pole No. | 4 |
| Protection Grade | IP23 |
| Phase / wire | 3 phase 4 wires |
