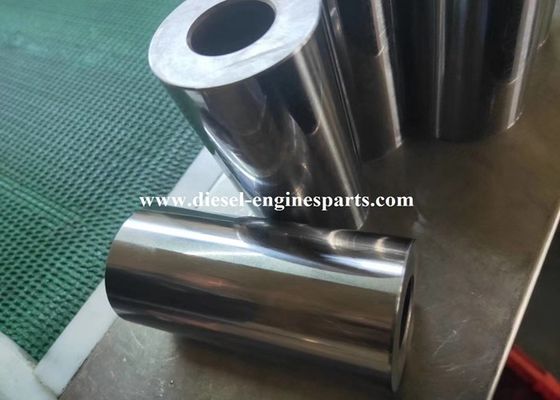

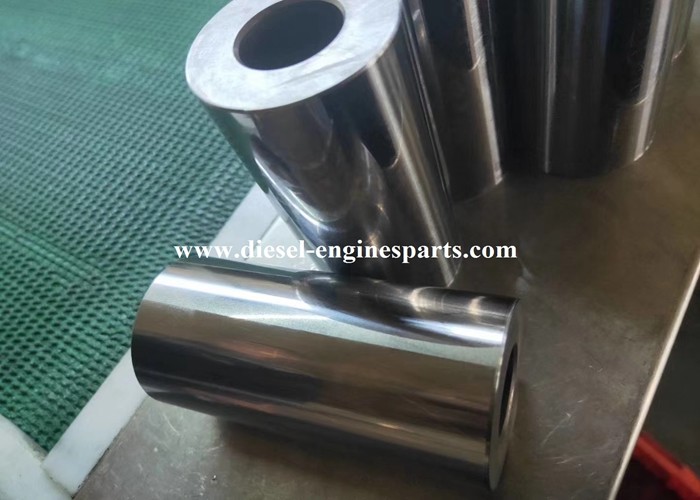

Sand Blasting Toyota 1hz Engine Piston Pin Lightweight

Place of Origin China
Brand Name Jingte
Model Number 1HZ piston pin
Minimum Order Quantity 800 piece
Price USD 1.5 per piece
Packaging Details neutral packing or up to customer
Delivery Time 30 working day
Payment Terms Western Union, L/C, T/T
Supply Ability 40000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shape Cylindrical Coating Sand Blasting
Structure Solid Material Steel
AppliCaterion Automotive Color Silver Bright
Processing Type Forging Or Extrusion Or Rotating Packaging Carton Box
High Light

toyota 1hz engine piston pin

,

sand blasting engine piston pin

You can tick the products you need and communicate with us in the message board.
Application 1HZ Truck
Dimension 29*65mm
Leave a Message
Application 1HZ Truck
Product Description

Lightweight Engine Piston Pin In Carton Box Toyota 1hz Engine Piston Pin

Product Description:

A PistonPin is a cylindrical pin installed on the piston skirt, with its middle part passing through the small end hole of the connecting rod, used to connect the piston and the connecting rod, and transmit the gas force borne by the piston to the connecting rod. To reduce weight, piston pins are generally made of high-quality alloy steel and made into hollow shapes.

Generally, there are steps or grooves in the piston pin hole used domestically, and there is also a solid piston pin. The inner hole of the piston pin used abroad is straight. The shape of the inner hole of the piston pin mainly includes cylindrical shape, two trunCaterered conical shapes, and a combination of two trunCaterered conical shapes and one cylindrical shape.

The piston pin is used to connect the piston and connecting rod, and transmit the force borne by the piston to the connecting rod or vice versa. The piston pin bears significant periodic impact loads under high temperature conditions, and due to the small swing angle of the piston pin in the pin hole, it is difficult to form a lubriCaterering oil film, resulting in poor lubriCatererion conditions. For this reason, the piston pin must have sufficient stiffness, strength, and wear resistance, and the mass should be as small as possible. The pin and pin hole should have appropriate fit clearance and good surface quality. In general, the stiffness of the piston pin is particularly important, and if the piston pin is bent or deformed, it may cause damage to the piston pin seat.

The material of piston pins is generally low-carbon steel or low-carbon alloy steel, such as 20, 20Mn, 15Cr, 20Cr or 20MnV. The outer surface is carburized and hardened, and then subjected to precision machining such as grinding and polishing. This not only improves surface hardness and wear resistance, but also ensures high strength and impact toughness.

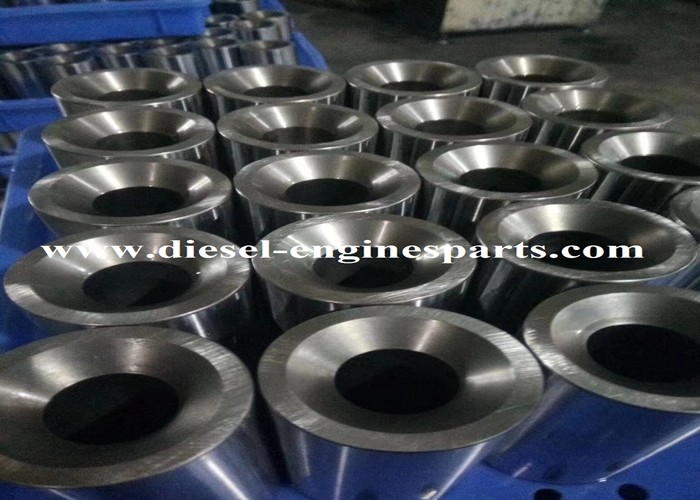

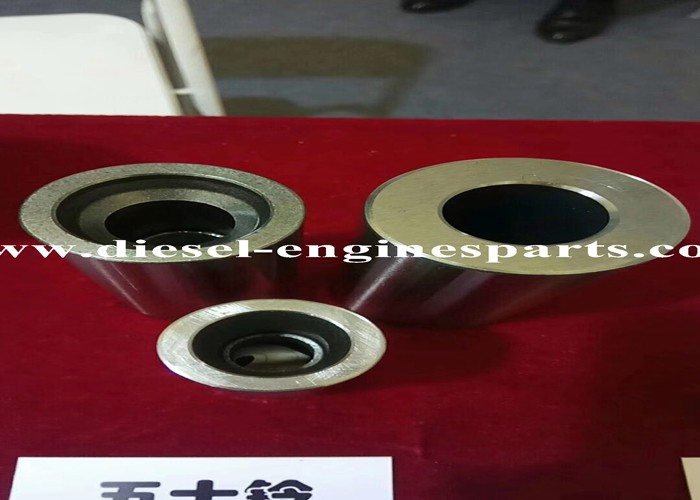

The structural shape of the piston pin is very simple, basically a thick walled hollow cylinder. The shape of its inner hole includes a cylindrical shape, a two segment trunCaterered cone shape, and a combination shape. The cylindrical hole is easy to process, but the mass of the piston pin is relatively large; The mass of the piston pin with two trunCaterered conical holes is relatively small, and because the bending moment on the piston pin is the largest in the middle, it is close to an equal strength beam, but the machining of the conical hole is difficult.

There are two ways to connect and fit the piston pin with the piston pin seat hole and the connecting rod small end bushing hole: "fully floating" installation and "semi floating" installation.

Quenching is one of the basic means of strengthening steel. Quenching steel into martensite and subsequently tempering to improve toughness is a traditional method of obtaining high comprehensive mechanical properties of steel. The working ability of a piston pin generally depends on its strength and stiffness. After quenching, the stiffness and strength of the piston pin are increased, making it more durable and of higher quality.



Features:

  • Product Name: Engine Piston Pin
  • Surface Treatment: Polishing
  • Packaging: Carton Box
  • Size: Standard
  • Heat Treatment: Annealing
  • Color: Silver Bright


AppliCatererions:

Jngte's engine piston pin is a cylindrical pin with high precision tolerance, made in China. It features high strength and has been annealed for superior performance. Packaged in carton box, Jngte's engine piston pin is the perfect choice for any engine appliCatererions.

Jngte's engine piston pin is made with high quality materials and has a better heat-resistant performance. It also offers excellent strength and precision, making it the ideal choice for engine appliCatererions. Furthermore, the annealing process ensures it is corrosion-resistant.

For engine appliCatererions that require superior strength and precision, Jngte's engine piston pin is the perfect choice. It is made from high quality materials and is annealed for superior performance. The cylindrical shape and high precision tolerance make it ideal for engine appliCatererions. Plus, it is packaged in a carton box for added convenience.

Jngte's engine piston pin is the perfect solution for any engine appliCatererion. With superior strength and precision, it offers a great choice for engine appliCatererions. The annealing process ensures it is corrosion-resistant and the cylindrical shape and high precision tolerance make it ideal for engine appliCatererions. Packaged in a carton box, Jngte's engine piston pin is the perfect choice for any engine appliCatererions.



Support and Services:

We offer technical support and service for our Engine Piston Pin product. Our team of experts are available to answer any questions you may have and to provide troubleshooting advice. We also provide replacement parts and on-site repairs if necessary. If you purchased an Engine Piston Pin from us, we offer a one-year warranty on all parts and labor.



Packing and Shipping:

Engine Piston Pin packaging and shipping:

The engine piston pin is packaged in a cardboard box for shipping. The box contains the engine piston pin, along with protective materials such as bubble wrap and foam to prevent any damage during transit. The box is then sealed with tape to ensure that the contents remain secure. The engine piston pin is then labeled with the appropriate shipping information and placed in an outer shipping container for transit.



FAQ:

Q1: What is the brand name of this Engine Piston Pin?
A1: The brand name of this Engine Piston Pin is Jngte.
Q2: What is the model number of this Engine Piston Pin?
A2: The model number of this Engine Piston Pin is piston pin.
Q3: Where is this Engine Piston Pin manufactured?
A3: This Engine Piston Pin is manufactured in China.
Q4: What is the material of this Engine Piston Pin?
A4: This Engine Piston Pin is made of aluminum alloy.
Q5: What is the size of this Engine Piston Pin?
A5: This Engine Piston Pin has a diameter of 20mm and a length of 55mm.
