Duetz PVC Rubber Timing V Belt for Diesel Engine Parts
| Place of Origin | CHINA |
|---|---|
| Brand Name | JINGTE |
| Model Number | D914 |
| Minimum Order Quantity | 1pcs |
| Price | USD 5 per piece |
| Packaging Details | neutral packing with carton box |
| Delivery Time | 25 day |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 500 piece |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PVC Rubber | AppliCaterion | Engineering Machines |
|---|---|---|---|
| Type | Timing Classical | Color | Black / Grey / Red |
| Usage | Connecting | Appearance | Grooved And Flat |
| Brand | Duetz Engine Belt | Price | Competitive |
| Highlight | Low Protraction Wedge V Belt,PVC Rubber Wedge V Belt |
||
You can tick the products you need and communicate with us in the message board.
| Timing v- belt | Deutz engine | OEM produced | |
|---|---|---|---|
| fan belt | aluminum made | ODM TYPE | |
| Wrapped Wedge belt | seal system | ISO Certificate |
Product Description
Low Protraction Wedge V Belt Industrial Fan Engine PVC Rubber Timing Classical
Product Specifications
| Attribute | Value |
|---|---|
| Material | PVC Rubber |
| Application | Engineering machines |
| Type | Timing classical |
| Color | Black / Grey / Red |
| Usage | Connecting |
| Appearance | Grooved and flat |
| Brand | Duetz engine belt |
| Price | Competitive |
Product Description
Industrial Fan Engine PVC Rubber Timing Classical Wrapped Wedge V Belt Diesel Engine Parts
Key Features
- Wrapped V-belts feature high strength and low protraction
- Small matching tolerance for precise operation
- Fatigue endurance limit of over ten million cycles
- Suitable for all industrial light duty applications
- Ideal for fractional horsepower motors and plant protection machinery
- Common applications include lawn mowers, wool conveyors, and carton packing machines
- Meets strict environmental protection requirements
Technical Specifications
| Type | Top width | Pitch width | Height | Angle | Length conversion | Length Range inch | Length Range mm |
|---|---|---|---|---|---|---|---|
| Z | 10 | 8.5 | 6 | 40º | Li=Ld-22 | 13"-120" | 330-3000 |
| A | 13 | 11.0 | 8 | Li=Ld-30 | 14"-394" | 356-10000 | |
| AB | 15 | 12.5 | 9 | Li=Ld-35 | 47"-394" | 1194-10000 | |
| B | 17 | 14.0 | 11 | Li=Ld-40 | 19"-600" | 483-15000 | |
| BC | 20 | 17.0 | 12.5 | Li=Ld-48 | 47"-394" | 1194-10008 | |
| C | 22 | 19.0 | 14 | Li=Ld-58 | 29"-600" | 737-15240 | |
| CD | 25 | 21.0 | 16 | Li=Ld-61 | 47"-394" | 1194-10008 | |
| D | 32 | 27.0 | 19 | Li=Ld-75 | 80"-600" | 2032-15240 | |
| E | 38 | 32.0 | 23 | Li=Ld-80 | 118"-600" | 2997-15240 | |
| F | 50 | 42.5 | 30 | Li=Ld-120 | 177"-600" | 4500-15240 |
Structure Details
1. Cover fabric - Made of cotton fabric and polyester fabric to protect the inner parts of the belts and provide strong abrasion resistance on the pulley groove.
2. Tension member - Made of polyester and Kevlar cord to provide the transmission power.
3. Rubber components - Top compression rubber, adhesive rubber, and bottom compression rubber made of NR, CR, SBR to maintain belt shape and protect tension member adhesion.
Additional Information
Delivery time: Normally ready goods in stock
Port: Tianjin, CN
Payment term: 30% TT in advance, 70% before shipment

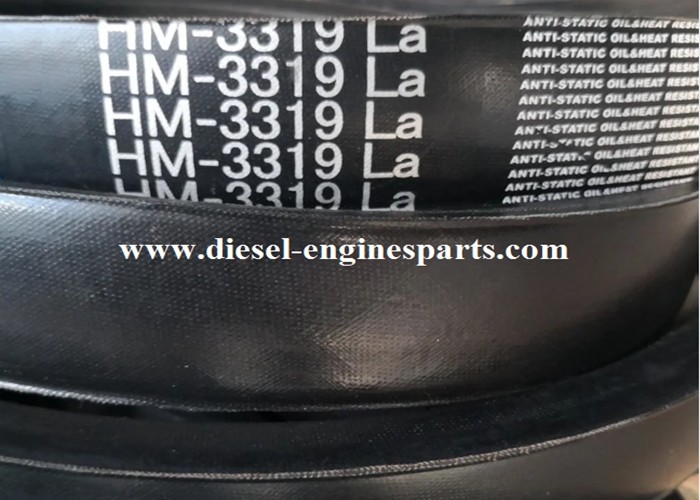

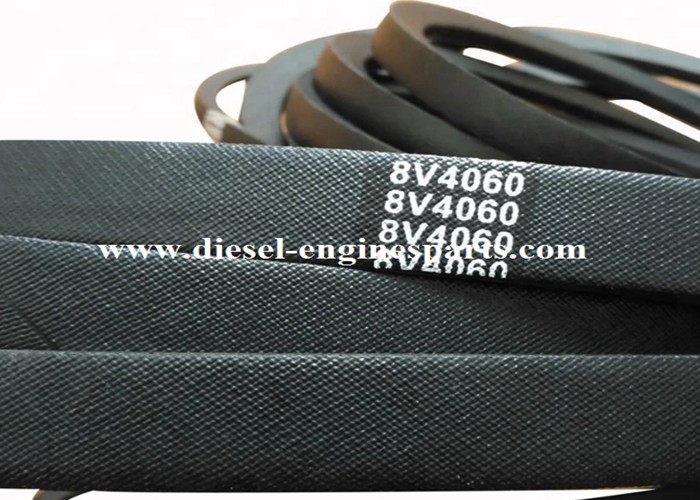

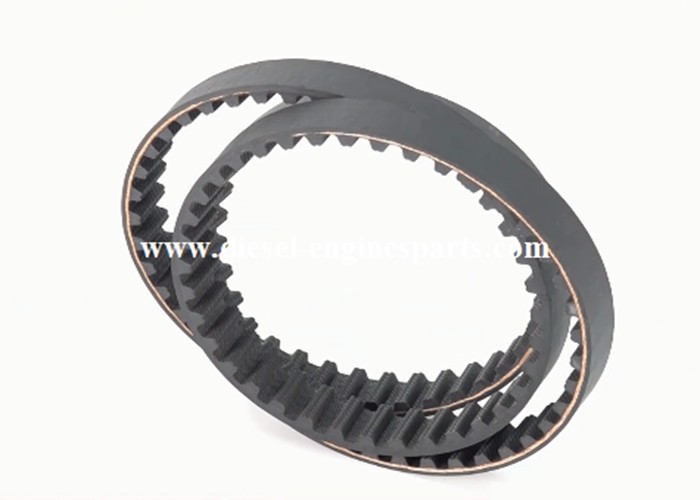

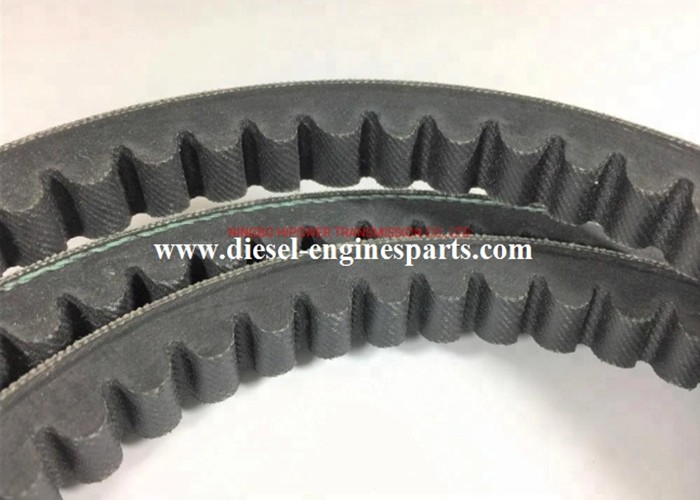

Product Images
