Isuzu 4hf1 Piston And Pin Lightweight For Automotive Truck

Place of Origin China
Brand Name Jingte
Model Number 4HF1 piston pin
Minimum Order Quantity 800 piece
Price USD 1.5 per piece
Packaging Details neutral packing or up to customer
Delivery Time 20 day
Payment Terms Western Union, L/C, T/T
Supply Ability 20000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Heat Treatment Annealing Color Silver Bright
Performance High Strength Shape Cylindrical
Packaging Carton Box Material Steel
Tolerance High Precision Coating Sand Blasting
High Light

isuzu 4hf1 piston and pin

,

lightweight piston and pin

You can tick the products you need and communicate with us in the message board.
Application ISUZU Truck
Leave a Message
Product Description

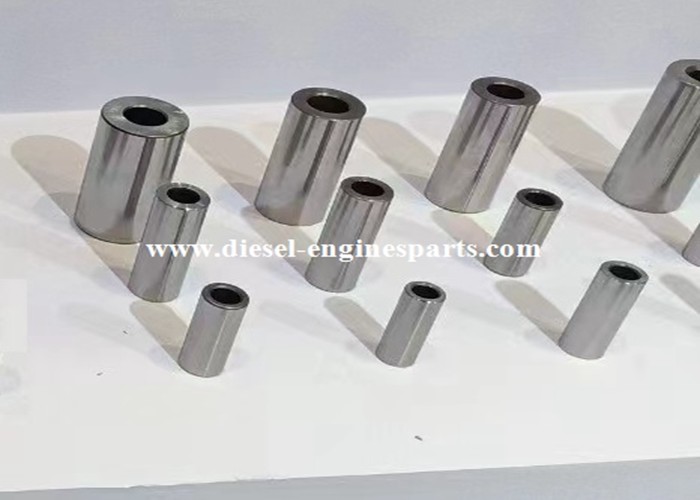

ISUZU 4HF1 Lightweight Automotive Truck Engine Piston Pin

Product Description:

A piston pin is a cylindrical pin installed on the piston skirt, with its middle part passing through the small end hole of the connecting rod, used to connect the piston and the connecting rod, and transmit the gas force borne by the piston to the connecting rod. To reduce weight, piston pins are generally made of high-quality alloy steel and made into hollow shapes.

Generally, there are steps or grooves in the piston pin hole used domestically, and there is also a solid piston pin. The inner hole of the piston pin used abroad is straight. The shape of the inner hole of the piston pin mainly includes cylindrical shape, two trunCaterered conical shapes, and a combination of two trunCaterered conical shapes and one cylindrical shape.

The piston pin is used to connect the piston and connecting rod, and transmit the force borne by the piston to the connecting rod or vice versa. The piston pin bears significant periodic impact loads under high temperature conditions, and due to the small swing angle of the piston pin in the pin hole, it is difficult to form a lubriCaterering oil film, resulting in poor lubriCatererion conditions. For this reason, the piston pin must have sufficient stiffness, strength, and wear resistance, and the mass should be as small as possible. The pin and pin hole should have appropriate fit clearance and good surface quality. In general, the stiffness of the piston pin is particularly important, and if the piston pin is bent or deformed, it may cause damage to the piston pin seat.

The material of piston pins is generally low-carbon steel or low-carbon alloy steel, such as 20, 20Mn, 15Cr, 20Cr or 20MnV. The outer surface is carburized and hardened, and then subjected to precision machining such as grinding and polishing. This not only improves surface hardness and wear resistance, but also ensures high strength and impact toughness.

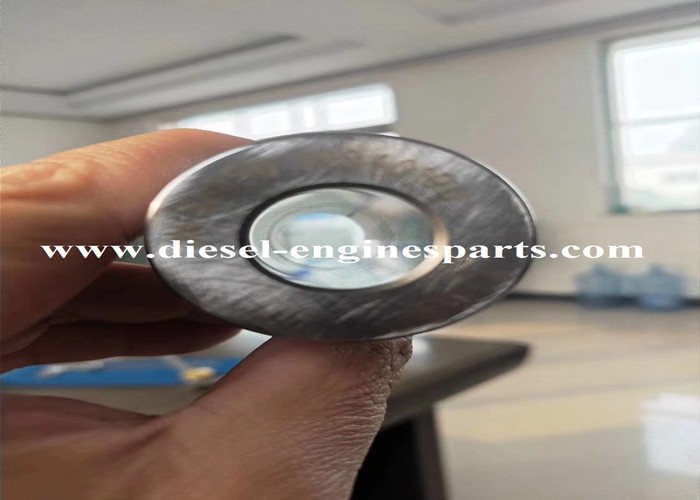

The structural shape of the piston pin is very simple, basically a thick walled hollow cylinder. The shape of its inner hole includes a cylindrical shape, a two segment trunCaterered cone shape, and a combination shape. The cylindrical hole is easy to process, but the mass of the piston pin is relatively large; The mass of the piston pin with two trunCaterered conical holes is relatively small, and because the bending moment on the piston pin is the largest in the middle, it is close to an equal strength beam, but the machining of the conical hole is difficult.

There are two ways to connect and fit the piston pin with the piston pin seat hole and the connecting rod small end bushing hole: "fully floating" installation and "semi floating" installation.

Folding fully floating when the engine is in operation, the piston pin, connecting rod small end, and piston pin seat all have relative motion, so that the piston pin can freely swing in the connecting rod bushing and piston pin seat, ensuring uniform wear. In order to prevent the axial movement of the fully floating piston pin from scratching the cylinder wall, retaining rings are installed at both ends of the piston pin for axial positioning.

Folding semi floating installation does not move axially and does not require a locking plate. It is widely used in small cars.

Quenching of piston pins in folding editing section is one of the basic means of strengthening steel. Quenching steel into martensite and subsequently tempering to improve toughness is a traditional method of obtaining high comprehensive mechanical properties of steel. The working ability of a piston pin generally depends on its strength and stiffness. After quenching, the stiffness and strength of the piston pin are increased, making it more durable and of higher quality.



Features:

  • Product Name: Engine Piston Pin
  • Surface Treatment: Polishing
  • Material: Steel
  • Packaging: Carton Box
  • Tolerance: High Precision
  • Coating: Sand Blasting


AppliCatererions:

Jngte Engine Piston Pin - Your Best Choice

Are you looking for a reliable engine piston pin? If so, look no further than Jngte engine piston pin. Our engine piston pin is made with high-quality materials to ensure its durability and strength. It is designed with standard size and high precision which make it fit for all types of engines. Moreover, it has a polishing surface treatment and is heat-treated with annealing to ensure its strength and performance. All the engine piston pins are packed in a sturdy carton box for easy transportation and storage.

Jngte engine piston pin is your best choice for engines as it can provide high-performance and long-lasting service. It is the perfect choice for high-performance and powerful engines. With its high precision and standard size, you can be sure that it fits perfectly and provides optimum performance. It also has a polishing surface treatment which gives it a clean and attractive finish. Furthermore, the heat treatment with annealing ensures its strength and performance even after prolonged use.

Our engine piston pin is the perfect choice for any engine. It is made with high-quality materials to ensure its durability and strength. Its standard size and high precision make it fit for all types of engines. Moreover, its polishing surface treatment and heat treatment with annealing ensures its strength and performance. Lastly, it is packed in a sturdy carton box for easy transportation and storage.

Choose Jngte engine piston pin and experience its long-lasting performance. Our engine piston pin is the perfect choice for engines as it can provide high-performance and long-lasting service. With its high precision and standard size, you can be sure that it fits perfectly and provides optimum performance. Furthermore, it has a polishing surface treatment which gives it a clean and attractive finish. Lastly, its heat treatment with annealing ensures its strength and performance even after prolonged use.



Support and Services:

Engine Piston Pin Technical Support and Service

At ABC Company, we are proud to provide you with technical support and service for our Engine Piston Pin product. We are here to help you get the most out of your Engine Piston Pin and ensure you have a positive experience. You can contact us at any time with any questions or concerns you may have.

We provide a variety of support services including:

  • 24/7 customer service
  • Product installation assistance
  • Troubleshooting and repair advice
  • Product maintenance and cleaning tips
  • Product updates and upgrades

We are committed to providing you with the best technical support and service for your Engine Piston Pin. If you have any questions or concerns, please don't hesitate to contact us.



Packing and Shipping:

Engine Piston Pin Packaging and Shipping:

The engine piston pin is packaged in a strong cardboard box. The box is sealed with tape to ensure the contents remain safe during transit. Inside the box, the piston pin is secured in a foam cushion to reduce vibration and shock. The box is then labeled with the relevant product information and is sent to the customer via an insured shipping service.



FAQ:
