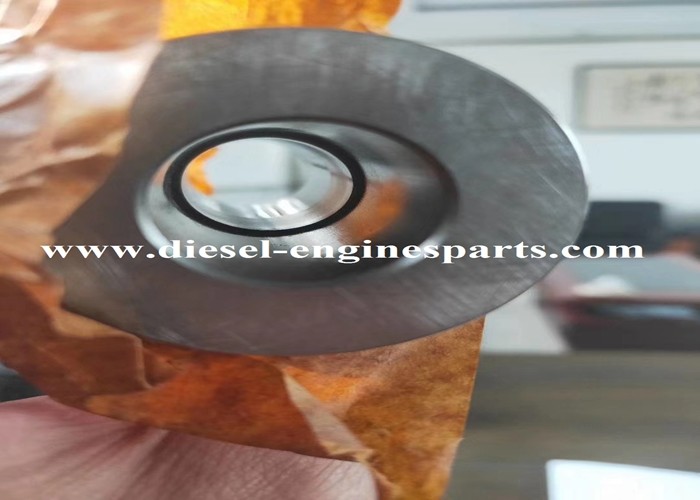

Hino H07d Piston Rod Pin High Precision Annealing Heat Treatment

Place of Origin China
Brand Name Jingte
Model Number H07D piston pin
Minimum Order Quantity 600 piece
Price USD 3 per piece
Packaging Details neutral packing, up to client
Delivery Time 20 day
Payment Terms Western Union, L/C, T/T
Supply Ability 40000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Silver Bright Processing Type Forging Or Extrusion Or Rotating
Coating Sand Blasting Performance High Strength
Weight Lightweight AppliCaterion Automotive
Packaging Carton Box Material Steel
High Light

hino h07d piston rod pin


annealing piston rod pin

Leave a Message
Product Description


High Precision Engine Piston Pin With Annealing Heat Treatment And HINO H07D Engine Piston Pin

Product Description:

A piston pin is a cylindrical pin installed on the piston skirt, with its middle part passing through the small end hole of the connecting rod, used to connect the piston and the connecting rod, and transmit the gas force borne by the piston to the connecting rod. To reduce weight, piston pins are generally made of high-quality alloy steel and made into hollow shapes.

Generally, there are steps or grooves in the piston pin hole used domestically, and there is also a solid piston pin. The inner hole of the piston pin used abroad is straight. The shape of the inner hole of the piston pin mainly includes cylindrical shape, two trunCaterered conical shapes, and a combination of two trunCaterered conical shapes and one cylindrical shape.

The piston pin is used to connect the piston and connecting rod, and transmit the force borne by the piston to the connecting rod or vice versa. The piston pin bears significant periodic impact loads under high temperature conditions, and due to the small swing angle of the piston pin in the pin hole, it is difficult to form a lubriCaterering oil film, resulting in poor lubriCatererion conditions. For this reason, the piston pin must have sufficient stiffness, strength, and wear resistance, and the mass should be as small as possible. The pin and pin hole should have appropriate fit clearance and good surface quality. In general, the stiffness of the piston pin is particularly important, and if the piston pin is bent or deformed, it may cause damage to the piston pin seat.

The material of piston pins is generally low-carbon steel or low-carbon alloy steel, such as 20, 20Mn, 15Cr, 20Cr or 20MnV. The outer surface is carburized and hardened, and then subjected to precision machining such as grinding and polishing. This not only improves surface hardness and wear resistance, but also ensures high strength and impact toughness.

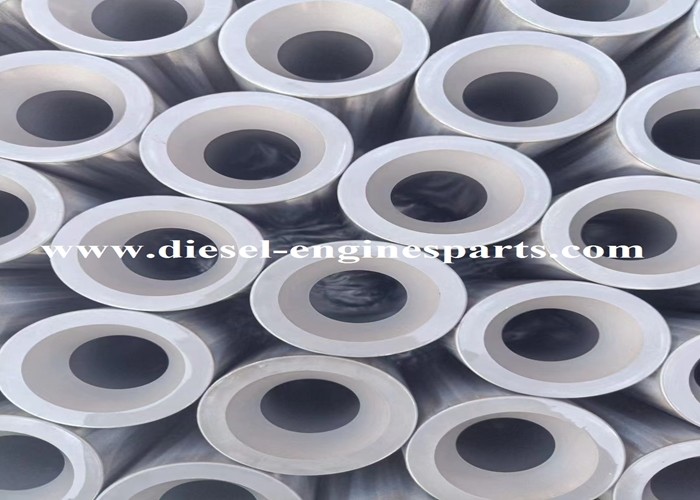

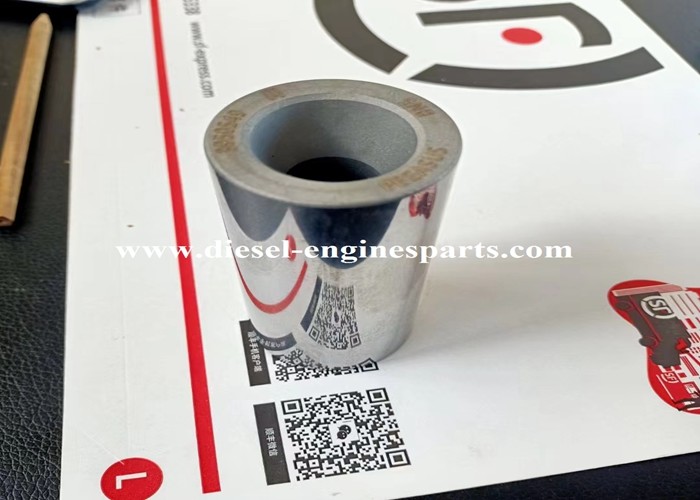

The structural shape of the piston pin is very simple, basically a thick walled hollow cylinder. The shape of its inner hole includes a cylindrical shape, a two segment trunCaterered cone shape, and a combination shape. The cylindrical hole is easy to process, but the mass of the piston pin is relatively large; The mass of the piston pin with two trunCaterered conical holes is relatively small, and because the bending moment on the piston pin is the largest in the middle, it is close to an equal strength beam, but the machining of the conical hole is difficult.

There are two ways to connect and fit the piston pin with the piston pin seat hole and the connecting rod small end bushing hole: "fully floating" installation and "semi floating" installation.

Folding fully floating: When the engine is in operation, the piston pin, connecting rod small end, and piston pin seat all have relative motion, so that the piston pin can freely swing in the connecting rod bushing and piston pin seat, ensuring uniform wear. In order to prevent the axial movement of the fully floating piston pin from scratching the cylinder wall, retaining rings are installed at both ends of the piston pin for axial positioning. Due to the fact that the piston is made of aluminum and the piston pin is made of steel, aluminum has a greater thermal expansion than steel. To ensure a transitional fit between the piston pin and the piston pin seat hole during high-temperature operation. During assembly, the aluminum piston is heated to a certain degree before the piston pin is installed, which is a widely used installation method.

Folding semi floating installation: The characteristic of the "semi floating" installation is that the middle of the piston is connected to the small end of the connecting rod with a fastening bolt, and the piston pin can only swing freely in the pin seats at both ends, without relative movement with the small end of the connecting rod. The piston pin does not move axially and does not require a locking plate. It is widely used in small cars.

Quenching of piston pins in folding editing section: Quenching is one of the basic means of strengthening steel. Quenching steel into martensite and subsequently tempering to improve toughness is a traditional method of obtaining high comprehensive mechanical properties of steel.

The working ability of a piston pin generally depends on its strength and stiffness. After quenching, the stiffness and strength of the piston pin are increased, making it more durable and of higher quality. Furthermore, quenching can avoid the occurrence of fatigue fracture of the piston pin due to too high hardness. After quenching, the piston pin should also be subjected to tempering treatment to reduce the hardness and increase the toughness, so as to ensure that there is a certain margin when undergoing impact load. Taking into account the difficulty of quenching and tempering for the piston pin, the piston pin is usually only subjected to quenching treatment.



  • Product Name: Engine Piston Pin
  • Packaging: Carton Box
  • Processing Type: Forging, Extrusion or Rotating
  • Material: Steel
  • Weight: Lightweight
  • Coating: Sand Blasting

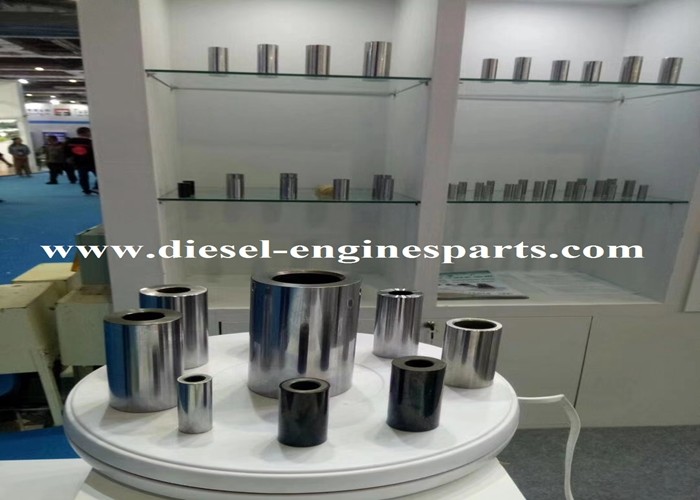

Engine Piston Pin

Engine Piston Pin from Jngte is a steel pin for engine connecting rod assembly. It is made of high strength steel and has solid structure. The surface is silver bright and polishing.

Jngte's Engine Piston Pin is made to the strictest quality standards in China. It has a high strength and its solid structure ensures its durability. It has a silver bright surface and polishing treatment, which makes it look beautiful and wear resistant.

Engine Piston Pin is widely used in automobile industry, engine manufacturing and other related industries. It is an essential part for engine assembly and its performance directly affects the engine's power and reliability.

Jngte Engine Piston Pin is the ideal choice for engine connecting rod assembly. With its high strength and solid structure, it ensures reliable and stable operation of the engine.

Support and Services:

At XXX Company, we provide technical support and services for our Engine Piston Pin products. Our team of experienced engineers and technicians is available to answer any questions you may have about installation, maintenance, and repair of our Engine Piston Pin. We also provide assistance with troubleshooting any technical issues that may arise.

Our team is committed to providing the highest level of customer service and satisfaction. We are available to help with any engineering and technical inquiries, as well as provide product information and recommendations. We also offer free online resources such as product manuals and FAQs.

At XXX Company, we strive to ensure that our customers receive the best possible service and support when it comes to our Engine Piston Pin. If you have any questions or concerns, please do not hesitate to contact us.


Packing and Shipping:


Packaging and Shipping

Engine Piston Pin is packaged using standard packaging materials to ensure safe delivery.

Shipping is done via a trusted courier service, with tracking information provided.



Q1: What is the Brand Name of the Engine Piston Pin?
A1: The Brand Name of the Engine Piston Pin is Jngte.

Q2: What is the Model Number of the Engine Piston Pin?
A2: The Model Number of the Engine Piston Pin is piston pin.

Q3: Where is the Engine Piston Pin made?
A3: The Engine Piston Pin is made in China.

Q4: What materials are used to make the Engine Piston Pin?
A4: The Engine Piston Pin is made of high-grade alloy steel.

Q5: What is the purpose of the Engine Piston Pin?
A5: The Engine Piston Pin is used to keep the piston connected to the connecting rod in an internal combustion engine.
