Cast Iron Mini Excavator Machine Hydraulic Controlled Micro Mini Excavator

Place of Origin CHINA
Brand Name JINGTE
Model Number FM-17
Minimum Order Quantity 1 set
Price USD 24400 set
Packaging Details neutral packing with wooden box, or as requested
Delivery Time 45day
Payment Terms L/C, T/T, Western Union
Supply Ability 50 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Plastic &Steel & Cast Iron Function Hydraulic Flexible Digger
Type Small Size Excavator Weight 1700kg
Color Yellow & Black Engine Diesel Engine
Drive Crawler AppliCaterion Narraw Area
High Light

Cast Iron Mini Excavator Machine

,

Hydraulic Controlled Mini Excavator Machine

,

Hydraulic Controlled Mini Excavator Machine

You can tick the products you need and communicate with us in the message board.
Excavator new desigh crawler 390Q changchai
Mirco digger narraw area operation 30Hp
hydraulic excavator turning radius 930mm width of chassis 1100mm
Leave a Message
Excavator new desigh crawler 390Q changchai
Product Description

Small Area Using Crawler Mirco Hydraulic Controlled Digger FM-17 Mini Excavator Machine




1. Product Description



1).. Excavators with compact dimensions can easily drive through narrow passages and doors.
2). Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3). Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4). Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5). The operator area is spacious and laid out to provide comfort and ease of operation.
6). Excellent engine provides excellent power with minimal fuel use for more productivity per tank.

7) It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineeringconstructionsfor roads, farms, waterconservancy projects, municipal projects, and energy projects.




2. Professional Home Tool Mini Hydraulic Excavator

Model FM-17
Bucket capacity 0.25m³
Engine Changchai 390Q
Walking speed 2.7 Km/h
Rotation speed 10r/min
Total length 2550 mm
Total width 1100 mm
Total height 2200 mm
Crawler length 2550 mm
Crawler width
250 mm
Body width 1500 mm
Maximum digging height 3900 mm
Maximum dumping height 2600 mm
Maximum digging depth 2500 mm
Maximum digging radius 4040 mm
Platform clearance to ground 458 mm
Swing angle 360°
Track width
180mm
Climbing gradient 30°

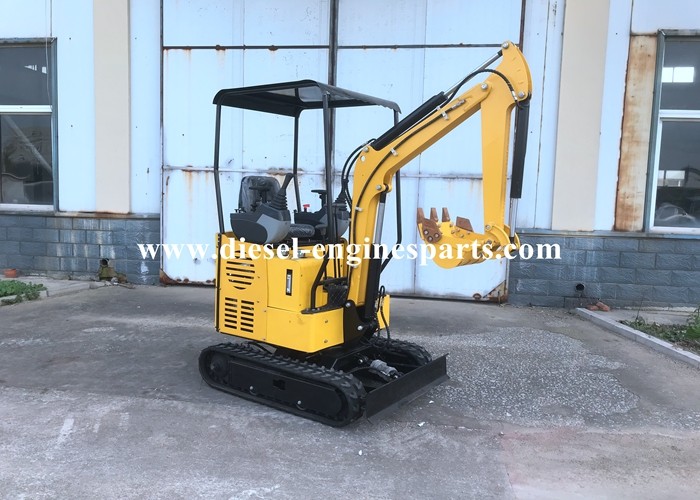

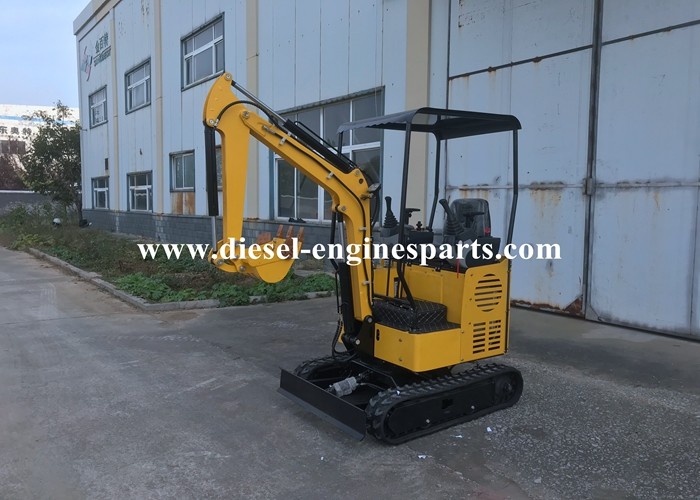

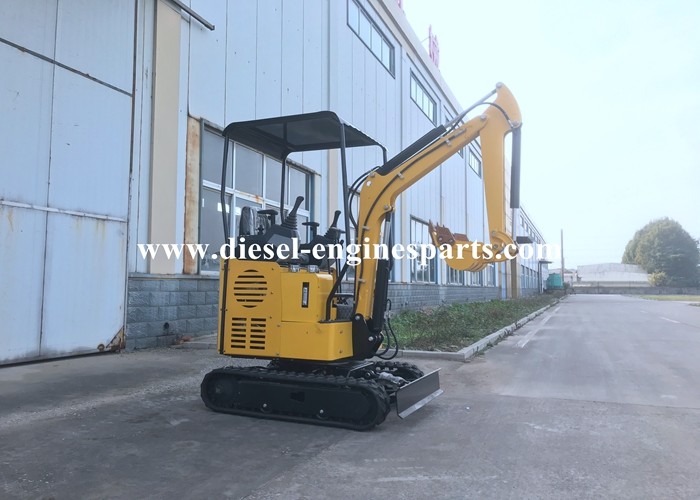

Cast Iron Mini Excavator Machine Hydraulic Controlled Micro Mini Excavator 0



3. Deliver time: Normally ready goods in stock     Port: Tianjin, CN



4. Payment term: 30%TT in advance, 70% against the copy of B/L

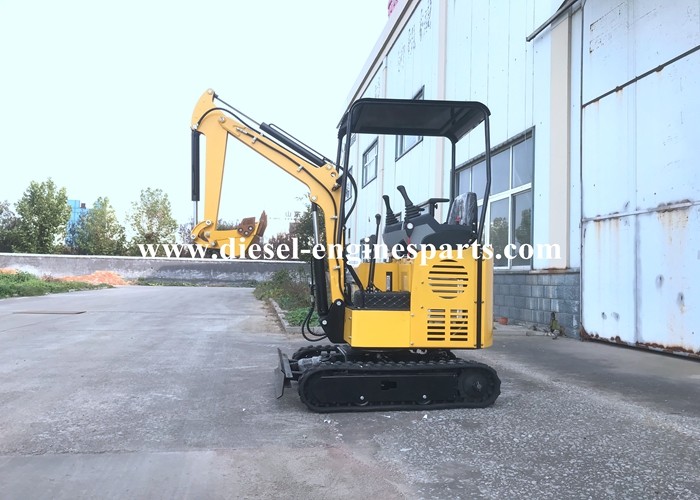

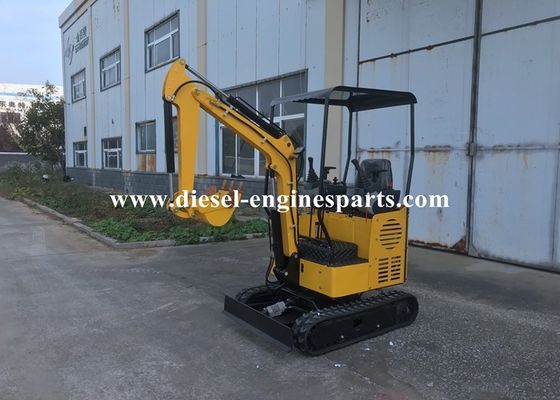

Cast Iron Mini Excavator Machine Hydraulic Controlled Micro Mini Excavator 1
