F10L413FW Air-Cooled Diesel Engine Assembly 10 Cylinder
| Place of Origin | CHINA |
|---|---|
| Brand Name | JINGTE |
| Model Number | F10L413FW |
| Minimum Order Quantity | 1 set |
| Price | USD27800 per set |
| Packaging Details | neutral packing with wooden box, or as requested |
| Delivery Time | 7day |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 200 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Stroke | 4 | Type | V Style Diesel Engine |
|---|---|---|---|
| Cooling | Air Cooled | Cylinder | 10 |
| Process | Setting | Usage | Power Supply |
| Price | Competitive Price | Payment | TT |
| Highlight | F10L413FW Diesel Engine Assembly,10 Cylinder Diesel Engine Assembly |
||
You can tick the products you need and communicate with us in the message board.
| engine set | turbocharger | OEM Deutz | |
|---|---|---|---|
| Engine assembly | V style engine | F10L413FW | |
| Whole engine | Motor starting | 12v |
Product Description
F10L413FW Diesel Engine Assembly
Iron material whole engine with 10 cylinders, designed for reliable power supply in industrial applications.
Key Specifications
| Attribute | Value |
|---|---|
| Stroke | 4 |
| Type | V style diesel engine |
| Cooling | Air cooled |
| Cylinder | 10 |
| Process | Setting |
| Usage | Power supply |
Product Description
The Deutz F10L413FW diesel engine assembly is a robust industrial power solution with air-cooled technology and V-style configuration.
Engine Details
- Engine assembly models: F10L413FW, F10L413F, F8L413F
- Construction material: Durable iron
- Adjustment: Precision setting
- Applicable area: Engineering machinery and industrial applications
Packaging & Shipping
- Dryer included in engine package
- Rust-preventative oil applied to engine body
- Protected with strong plastic bag
- Packed with fumigation-free plywood case
Technical Specifications
| Model | Bore/Stroke | Rotating Speed | Dimension | Weight |
|---|---|---|---|---|
| F10L 413F | 125/130 | 1500~2500 | 150×122×133 | 1080kg |
| F10L 413FW | 125/130 | 1500~2500 | 150×122×133 | 1080kg |
Detailed Engine Parameters
| Parameter | Value |
|---|---|
| Cylinder | 10 |
| Bore (mm) | 125 |
| Stroke (mm) | 130 |
| Cooling | Air-cooled, 4 stroke |
| Total displacement (L) | 15.9 |
| Dimensions (mm) | 1500×1050×1000 |
| Weight (kg) | 990 |
| Rated power & speed (kW/r/min) | 170/1500-2500 |
| Fuel consumption (g/kW.h) | ≤230 |
| Oil consumption (g/kW.h) | ≤2.04 |
| Motor | 14V/31A; 28V/24A |
| Starter | 12V/3.7KW; 24V/4.8KW |
| Oil volume (L) | 16 |
Availability & Payment
Normally in stock. Payment terms: 30% TT in advance, 70% before the copy of B/L.

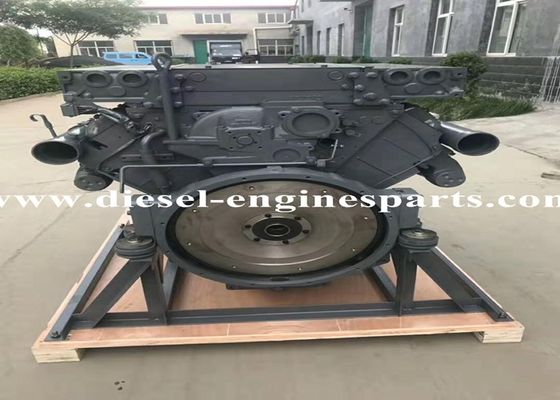

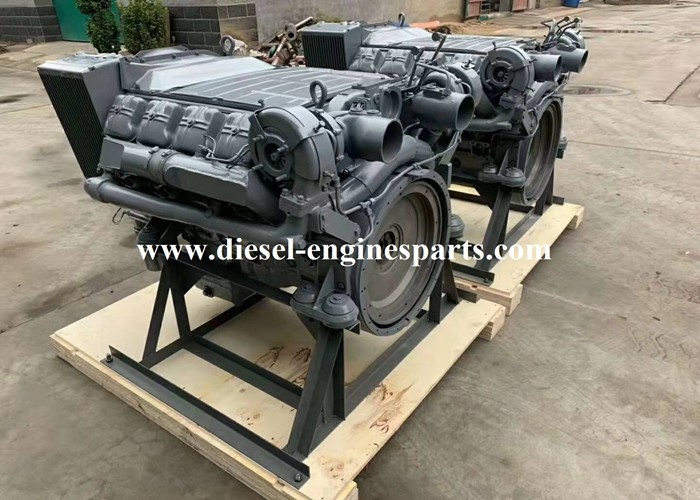

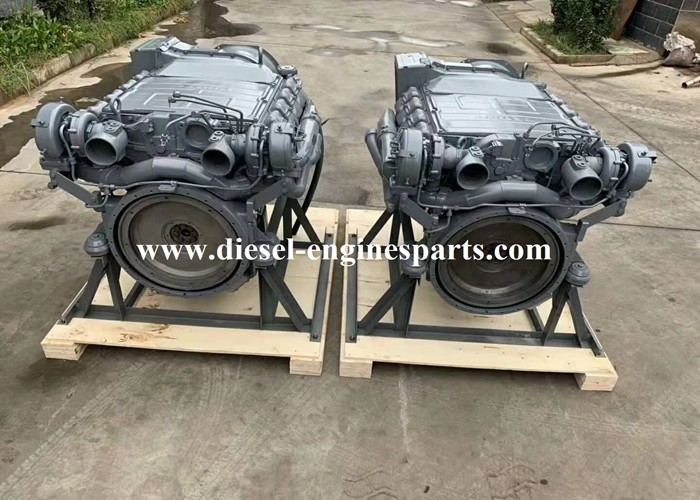

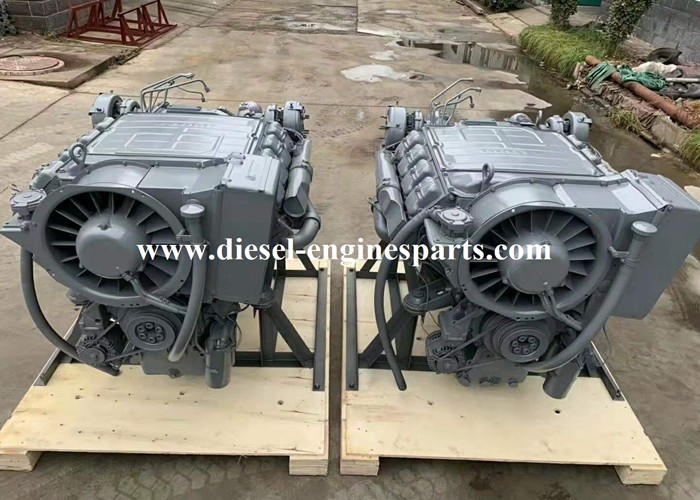

Product Images
